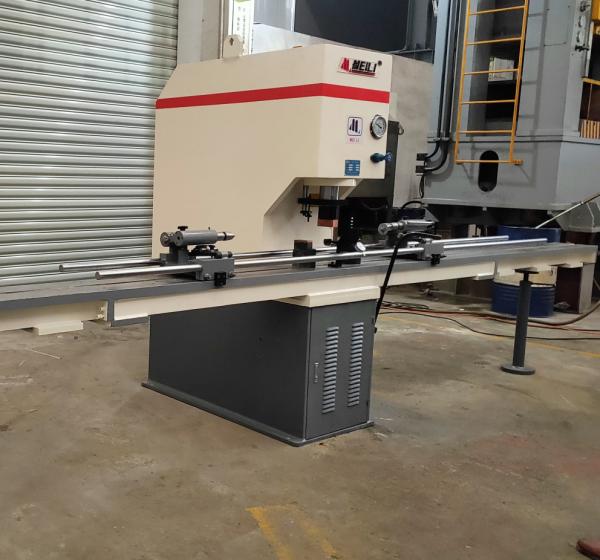

Servo Manual Operation Hydraulic Straightening Press 40 Tons C Frame

  • 1
  • 2

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : Servo manual operation Straightening Hydraulic Press Manufacturer in China

Force : 40T

Table size : 2000mm L-R

Max opening height : 400mm

Max stroke of slider : 300mm

Throat Depth : 200mm

Type : C Frame

Automatic : Semi-automatic

Contact Now

Servo manual operation Straightening Hydraulic Press Manufacturer in China

A hydraulic straightening press can be used to straighten Shafts, Bars, Tubes, Weldments, Plates, Beam profiles
Available in a wide variety of designs, Straightening Presses accommodate the needs of several industries. Our machines easily straighten any workpiece, from small hollow tubes to massive steel plates, and everything in between.

Wherever beam profiles, plates or welded structures have to be straightened, bent or pre-tensioned (cambered), the straightening press comes into its own. The machines have a very robust design and have been successfully demonstrating their efficiency and consistently reliable operation in metal and steel construction companies, vehicle construction and general machine building throughout the world for decades. The straightening presses can be used to straighten quickly, precisely and reliably. We offer various straightening solutions from small manual straightening machines to large, automated straightening systems.

Description Unit 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T 400T 500T
Force KN 6.3 10 16 25 40 63 100 160 200 250 315 400 500
Table size L-R mm 1000 1600 1600 1600 2000 2000 2000 2000 2000 2000 3000 3000 3000
F-B mm 300 300 300 350 400 500 500 500 600 600 600 600 600
Max opening height mm 300 300 350 350 400 400 400 500 500 600 600 700 700
Max stroke of slider mm 250 250 300 300 300 300 300 400 400 500 500 500 500
Throat Depth mm 170 170 200 200 200 300 300 300 350 350 350 350 350
Down speed of slider mm/s 30 30 30 30 30 30 30 30 20 20 20 20 20
Return speed of slider mm/s 70 70 70 70 60 60 60 60 50 50 50 50 50
Height from working table mm 750 750 750 750 750 750 750 750 750 750 750 750 750
Powder of motor KW 3 3 4 4 5.5 5.5 7.5 11 11 15 15 22 22

Servo Manual Operation Hydraulic Straightening Press 40 Tons C Frame

Servo Manual Operation Hydraulic Straightening Press 40 Tons C Frame

Servo Manual Operation Hydraulic Straightening Press 40 Tons C Frame
