25Tons Hydraulic Straightening Press Machine 25KN Semi automatic

Product Categories
Wuxi Meili Hydraulic Pressure Machine Factory
Contact Now

25Tons Hydraulic Straightening Press Machine 25KN Semi automatic

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : Straightening Hydraulic Press Factory in China

Force (kN) : 25T

Max opening height : 350mm

Automatic : Semi-automatic

Max stroke : 300mm

Advantage : Easy Operation Machine

Throat Depth : 200mm

System : CNC

Contact Now

Straightening Hydraulic Press Factory in China

Straightening hydraulic press for sale economical and Practical, Hydraulic control adopts to insert set valve integrated system, decrease let out Point.Movement reliability, durable and long life span, Itis constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form.

Application field: This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.

Description Unit 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T 400T 500T
Force KN 6.3 10 16 25 40 63 100 160 200 250 315 400 500
Table size L-R mm 1000 1600 1600 1600 2000 2000 2000 2000 2000 2000 3000 3000 3000
F-B mm 300 300 300 350 400 500 500 500 600 600 600 600 600
Max opening height mm 300 300 350 350 400 400 400 500 500 600 600 700 700
Max stroke mm 250 250 300 300 300 300 300 400 400 500 500 500 500
Throat Depth mm 170 170 200 200 200 300 300 300 350 350 350 350 350
Down speed mm/s 30 30 30 30 30 30 30 30 20 20 20 20 20
Return speed mm/s 70 70 70 70 60 60 60 60 50 50 50 50 50
Height from working table mm 750 750 750 750 750 750 750 750 750 750 750 750 750
Powder of motor KW 3 3 4 4 5.5 5.5 7.5 11 11 15 15 22 22

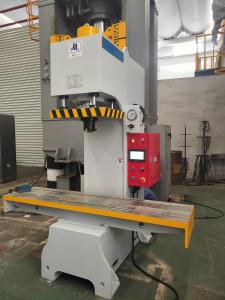

25Tons Hydraulic Straightening Press Machine 25KN Semi automatic

25Tons Hydraulic Straightening Press Machine 25KN Semi automatic
