315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, , D/P, D/A,

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Force (kN) : 315T

Function : Steel plate straightening

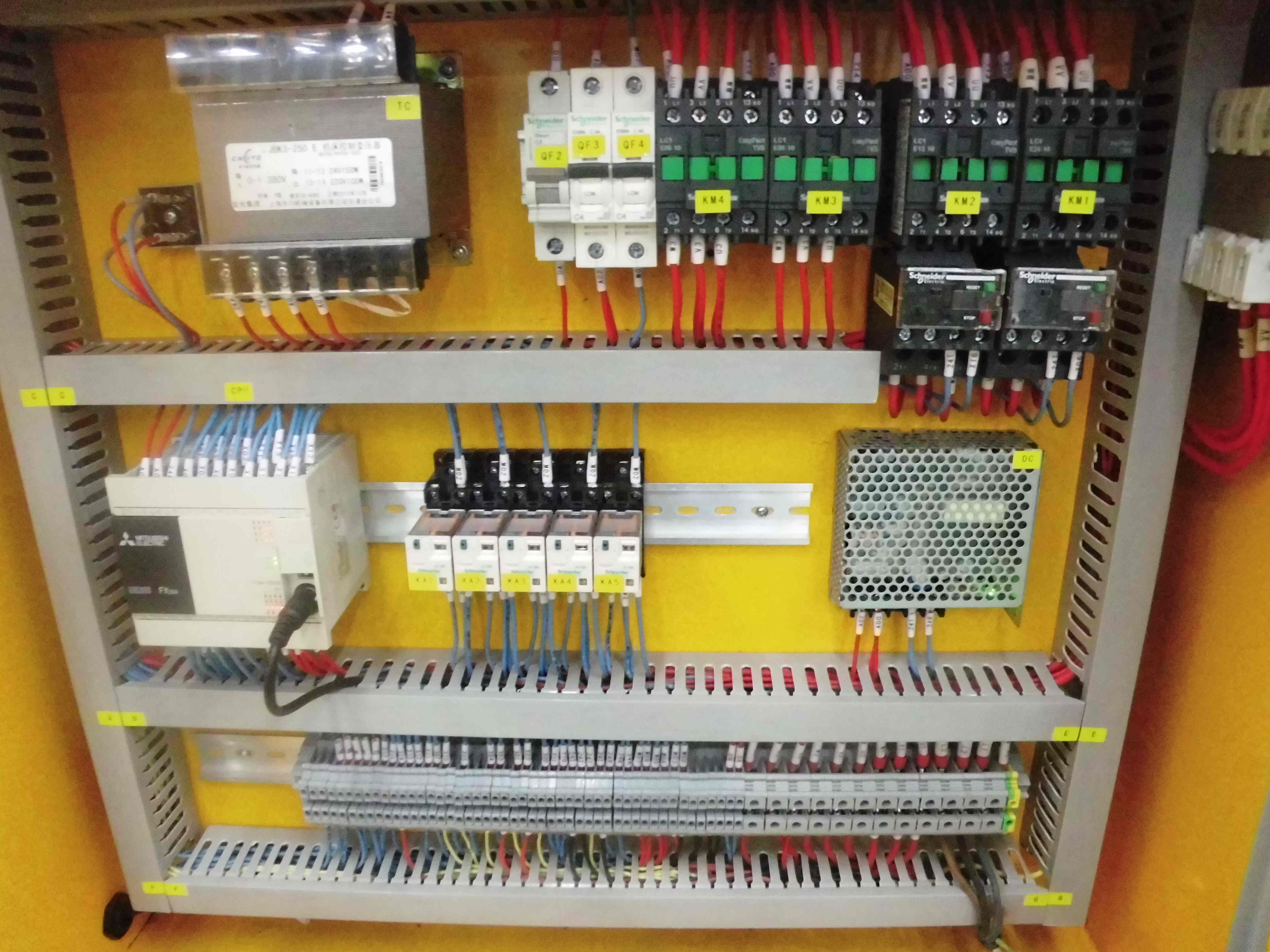

Core components : Moto Pump PLC Other

Voltage : 380V

Motor Powder : 16.5KW

Warranty : 2 years

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Contact Now

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

MEILI is experienced and dynamic. It is a team of people who love designing machinery and never stop innovating.

1. Cartridge valve control, to improve the efficiency
2. Preset pressure forming and preset stroke
3. High efficiency of cooling device, suitable for continuous production


Application
Drawing,bending,flanging,cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials.

OPTIONAL ACCESSORIES:

1. Photoelectric protection device

2. Moving workbench

3. Scroll to bracket

4. Lifting device

5. Touch screen

6. PLC

7. Numerical control system of Stroke, pressure, speed

8. The hydraulic system of cooling device

9. Servo control system

Description Unit 63T 100T 200T 315T 500T 630T 800T 1000T
Nominal Force T 63 100 200 315 500 630 800 1000
Table size L-R mm 1400 1600 1800 2000 2400 2600 2800 3000
F-B mm 800 800 1000 1200 1400 1500 1600 1800
Max opening height mm 500 500 600 600 700 700 800 800
Max stroke of slider mm 500 500 600 600 700 700 800 800
Head moving distance mm 1000 1200 1300 1400 1600 1800 1800 2000
The width of longmen mm 1500 1600 1800 2000 2400 2600 2800 3000
Down speed of slider mm/s 22 30 30 30 30 30 25 25
Working speed of slider mm/s 2-10 adjustable
Return speed of slider mm/s 50 50 50 50 50 40 40 40
Height from working table mm 750
Powder of motor KW 7.5 7.5 11 16.5 22 33 55 55


315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V
